TT LMK Color – DIN EN 13032
The Imaging Colorimeter series LMK Color are laboratories measurement systems for analysing luminance and color according DIN 5032 and 5033 at highest accuracy level.
Fine spectral matching acc. CIE 1931 XYZ
The precise spectral matching allows to measure color values e.g. dominant wavelength also of LED light sources.
LMK LabSoft measurement and analysis software
The LMK LabSoft application software introduces a powerful and efficient measurement and analysis tool.
- Simplified photometric and colorimetric analysis of luminous objects
- Automation of repeated measurment tasks by user macros and ActiveX-interfaces
- Add-on moduls for specific tasks like display analysis for BlackMURA or LID or light sources

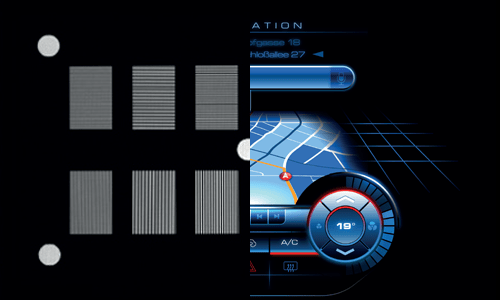

LMK Position – Simplified Aligment and Measurement of Displays
The compact robot solution extremely reduces the time and expenses to measure all kinds of display setups. The video presents the most often used measurement tasks used with this setup:
- BlackMURA: Display uniformity analysis of plane and free-form types of displays
- ISO-Contrast or ISO-Color or ISO-Luminance: Emission dependent properties of displays
- Sticking Images: Burn-in properties of display content
- Sparkle: Analysis of anti-glare layers onto displays
Imaging Colorimeter
The Imaging Colorimeter LMK is an advanced measurement system designed for precise luminance and color analysis, complying with DIN 5032 and 5033 standards. This tool is ideal for analyzing the color and optical properties of light sources, such as LEDs, thanks to its fine spectral matching according to the CIE 1931 XYZ model.
With the LMK LabSoft software, users can perform simplified photometric and colorimetric analysis, automating repetitive tasks through macros and ActiveX interfaces. The Imaging Colorimeter LMK is perfect for analyzing display uniformity, contrast, and luminance, including checks for BlackMURA, burn-in, and anti-glare properties of displays. The compact robotic solution significantly reduces time and costs, offering fast and efficient measurements for various types of displays and light sources. This system provides a powerful, high-accuracy solution for a wide range of imaging and measurement applications.
